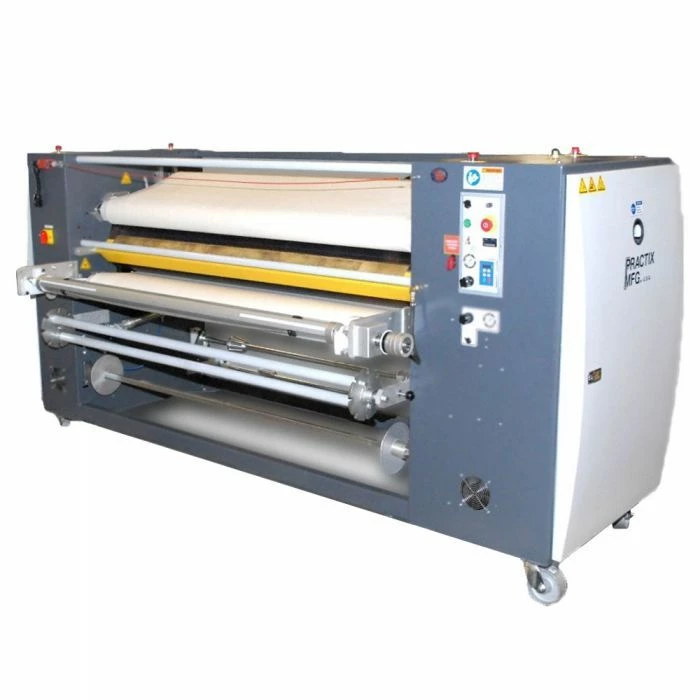

66″ Practix OK-10 RTR 10″ Diameter Drum

The Practix dye sublimation rotary heat model OK-10 is available in 48” or 66” wide printable widths. The oil filled heated drum is 10″ (250 mm) in diameter and has 240 degrees of wrap achieving faster production speeds then most comparable models. This model can be used for transferring on continuous or roll materials. This heat transfer machine is small and affordable offering the Practix high quality innovative engineered design using a heavy duty frame, automation, and best quality electrical and pneumatic components like all Practix heat transfer equipment, including sublimation machines, lamination machinery and embossing equipment.

Maximum Productivity:

• 66″ Printable width
• Larger 10″ diameter drum for faster production speeds
• 240 degrees or 21″ of production contact
• Oil filled drum for consistent heat throughout the width of the drum
• Automatic belt tracking
• Quick heat up

Key Features:

• Digital temperature controller with PID and autotune
• Digital speed controller
• 2 unwinds/2 rewinds with independent pneumatic adjusting for more tension or brake
• 1 unwind/1 rewind to utilize tissue paper for protection of the belt for cut parts or mesh fabric
• 3″ chucks for all unwind and rewind shafts
• Reversing capability
• Safety systems (emergency stops and hand protection at entry)
• Automatic cool down

Specifications of the OK-10 include:

• Belt Width 48” (1200mm) / 66” (1700mm)
• Drum Diameter 10” (250mm)
• Max. Temperature 450 F (240 C)*
• Max. Belt Speed 5 ft/min (1.5 m/min)
• Power Supply 13 kW 17kW
• Motor 1/4 H.P
• Air Supply 100 PSI 0.5CFM
• Weight 1500 lb (680 kg) 1700 lb (770 kg)

Availability varies upon production time. Rotary Press is shipped via truck line. Practix to provide Install and Training. Additional Fees do apply for Shipping/Install Training. Licensed Electrician needed for install. Fork Lift will be needed upon delivery of press
