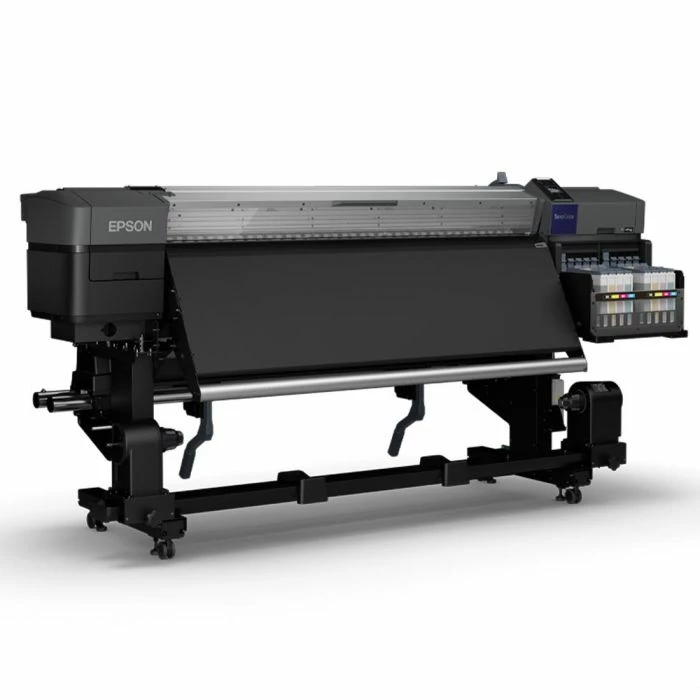

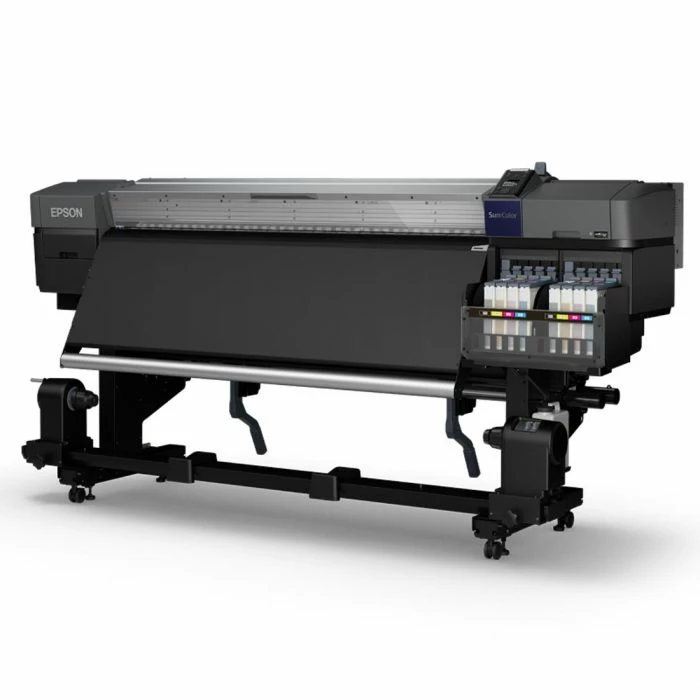

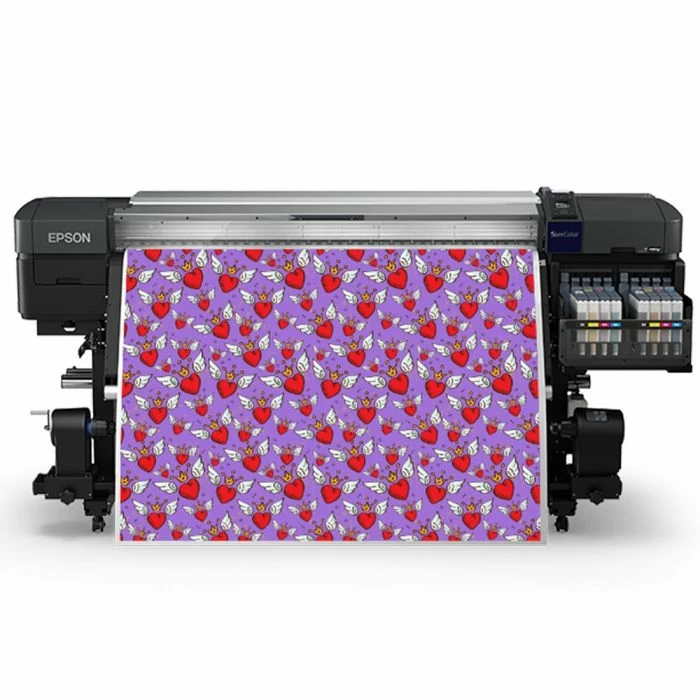

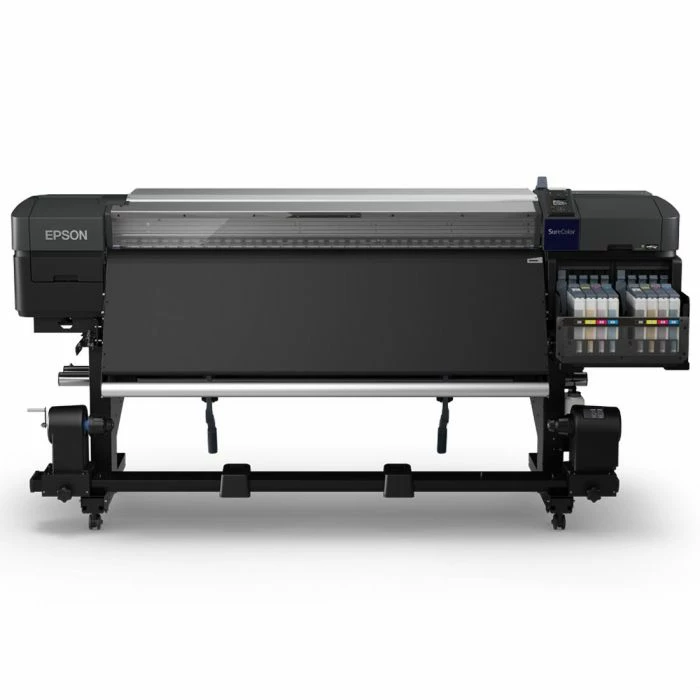

Epson SureColor F9470PE 64″ High Speed Dye-Sublimation Printer – DEMO Model

Please note, this is a demo unit that has been used in Coastal’s facilities

Built from the ground up, the high-performance SureColor F9470 64-inch printer is a reliable, turnkey solution for dye-sublimation applications. Designed to meet the unique needs of high-volume, factory environments, the F9470 includes dual PrecisionCoreTFP printheads and delivers outstanding-quality prints at speeds up to 1,169 sqft/hour1. Featuring UltraChrome DS ink technology with High-Density Black ink, the F9470 delivers exceptional color saturation and contrast for professional-quality apparel, soft signage, decor and more. Plus, with Epson Edge workflow software, highly accurate roll-to-roll media support system with advanced auto paper-tension control, and high-capacity ink tanks, the F9470 supports seamless 24/7 production.

Included:

• Epson F9470 4 color Sublimation Printer – Demo Unit
• Full set of CMYKx2 Ink
• Head Maintenance Kit
• Warranty – Standard 1-year limited warranty. Optional Epson Service programs available for a total of 3 years of coverage

Shop replacement ink here

---

Print:

• Printing Technology: Dual advanced PrecisionCore^®TFP^® 8-channel, drop-on-demand, inkjet printhead with ink-repelling coating technology
• Maximum Print Resolution: 1440 x 720 dpi
• Minimum Ink Droplet Size: Variable Droplet Technology
• Print Speed:
  • Speed: up to 1,169 sq ft/hr
  • Sports apparel: up to 568 sq ft/hr
  • Fashion/signage: up to 1,004 sq ft/hr

Ink:

• Ink Type: UltraChrome DS with High-Density Black ink; 4-color
• Ink Configuration: C, M, Y, HDK
• Replacement Ink: UltraChrome DS Ink
  • High Density Black Ink Packs (T46C820)
  • Cyan Ink Packs (T46C220)
  • Magenta Ink Packs (T46C320)
  • Yellow Ink Packs (T46C420)

General:

• Operating Systems: Windows^® 10 and 8.1
• System Requirements:
  • Minimum PC Requirements: 2GHz CPU, 2GB RAM, 120GB HDD, DVD-ROM or Internet connection.
  • Recommended PC Specifications: 3GHz or higher quad core CPU, 8GB RAM, 500GB SSD, and high-speed Internet connection

Temperature: Operating (recommended): 59 to 77F (15 to 25C). Operating: 59 to 95F (15 to 35C)

Humidity: Operating (recommended): 40 – 60% (no condensation). Operating: 20 – 80% (no condensation)

Sound Level: Less than 59 dB(A) according to ISO 7779

Dimensions: 103″ x 37″ x 53″ (2,620 mm x 934 mm x 1,332 mm) (W x D x H)

Weight: 639 lb (290 kg)

Country of Origin: China

Warranty: Standard 1-year limited warranty. Optional Epson Service programs available for a total of 3 years of coverage

Ink Supply System:

• Ink Supply Fill Volume: 3,000 mL each color x 4 colors total
• In-box Ink Fill Volume: 2,000 mL each color x 4 colors total
• Ink Shelf Life: 2 years from printed production date Printer is designed for use with Epson ink packs only, not third-party ink systems*

Printable Area and Accuracy:

• Maximum Paper Width: 64″
• Minimum Paper Width: 11.8″
• Maximum Printable Width: Up to 63.6″

Sheet Media Handling:

• Left/Right Margins: 0.20″ (0.40″ total)

Roll Media Handling:

• Single Roll-to-Roll / Top-loading Roll: 64″ wide
• Media Core: 2″ or 3″ core diameter
• Maximum Roll Diameter: Up to 9.8″
• Maximum Roll Weight: Up to 100 lb
• Media Thickness: From 45 gsm to 1 mm thick
• Take-up Reel: Fully automatic “wind in” or “wind out” with tension control

Printer Details:

• Printer Language: Epson ESC/P^® raster
• Interfaces: 1000Base-T Ethernet (1 port), Hi-Speed USB 2.0 (1 port)

Power:

• Rated Voltage: AC 100 – 120 V; 200 – 240 V
• Rated Frequency: 50 / 60Hz
• Rated Current: 10.0 A at 100 – 120 V, 5.0 A at 200 – 240 V
• Power Consumption:
  • Printing: approx. 570 W or less
  • Power Off: approx. 1.0 W
  • Sleep Mode: approx. 17 W
  • Standby Heaters On: 340 W

Power Requirements: Requires two outlets
