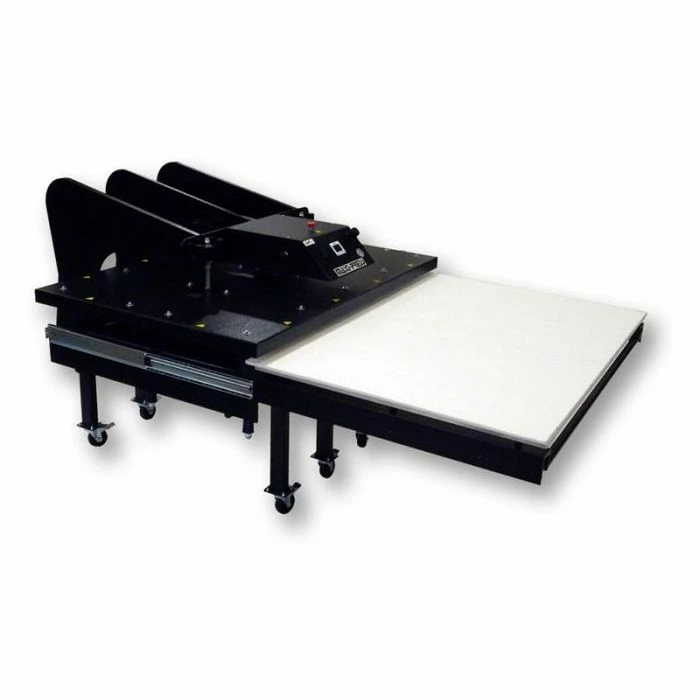

Geo Knight Maxi Press Air Automatic – Large Format Heat Press – 32″ X 42″

The MAXI•PRESS AIR is an Automatic large format heat transfer press intended for more automated and higher pressure needs than the Manual version. The MAXI•PRESS AIR provides an oversized platen & a better production-oriented press with a single front loading table and high pressure pneumatic lifting system.

This pressure system is powered by a dual air-bag, 10-ton, 20,000 lbs. max force self-leveling mechanism. The press is activated with a push of a button, and automatically releases at the end of the timing cycle. The front console features the Digital Knight control, regulating digital temperature and digital automatic timing control, as well as full air pressure regulation.

The heavy steel triple reinforced welded C-Frame design is built to withstand a lifetime of intense pressing and automatic operation and allows for full draping of materials over the front, left and right sides of the press, without hindrance. For a large-format heavy pressure automatic press that is one step below the larger industrial 931 Triton machines, the MAXI•PRESS AIR is the solution.

MAXI•PRESS AIR Standard Features

Features

• Available in Single shuttle (standard) or Dual loading table format (optional)
• SuperCoil-Microwinding™ heater technology
• Ultra-thick heater block assembly
• Solid steel pressure bars
• Heavy steel frame structures
• 20,000 lbs. force, 10-ton air bag lift mechanism
• Self-leveling pressure system
• Solid lower platen base
• Solid loading bed with ultra-thick nomex padding
• Dual button easy-activate safety circuit
• Heavy duty locking casters for easy movability and solid foundation support
• Automatic press, release, temp & timer controls

Warranty

• Free LIFETIME Tech Support
• Full one year warranty on heating element, controls and entire press

Specifications

• Minimum Compressed Air Required: 20gal, 4cfm, 100psi, 3/8″ line
• Electrical for 44×64: 208V-230V, 18000W, 1PH, 85A, 100A breaker recommended (3ph/18KW/50A optional add $375)
• Electrical for 32×42: 208V-230V, 9000W, 1PH, 42A, 50A breaker recommended
• Top & Bottom Heat: 44×64 = 36KW/3PH – 32×42 = 18KW/1PH

– Download Manufacturer Product Sheet/Specifications

– Download Delivery/Install/Electrical/Air Requirements PDF
