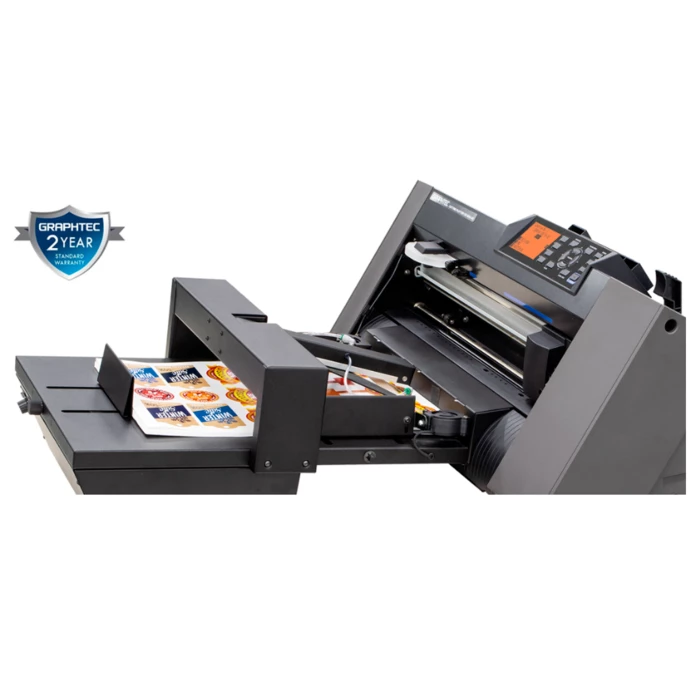

Graphtec CE7000-40 15″ Vinyl Cutter With Automatic Sheet Cutter

Increase production efficiency and improve cutting results when creating custom apparel, packaging and cards with a Graphtec Automatic Sheet Cutter & Graphtec CE7000-40 – 15″ Cutter!

The Graphtec Automatic Sheet Cutter is designed to automatically feed and contour cut media without the need for intervention by an operator. Simply print your images using your small format printer, load the sheets into the Graphtec cutter and watch as it cuts out your images with utmost precision! Equipped with precision eye-mark CCD camera technology, this auto sheet cutter allows for quick reading of crop marks with a precision grade of 0.2 mm. Create cards and packaging with confidence, as the Graphtec Automatic Sheet Cutter is excellent for die cutting card stock!

Box Includes:

• Graphtec CE7000-40 15″ Vinyl Cutter
• Graphtec Auto Sheet Cutter
• Graphtec Cutting Master 4 Software
• Graphtec Pro Studio Software
• Graphtec 45° Blade
• Lifetime Technical Support

Features:

• Continuous, hands-free sheet media loading and processing
• Dedicated software ensures accurate alignment
• CCD Camera quickly scans 2-point registration marks
• Contour and perforated cutting of printed graphics
• Add additional sheets to the feeder without resending the job
• Capable of handling up to 200 sheets of media in a continuous cycle (but with the ability to add further sheets as required without interrupting the cutting process)
• Suitable for creating custom apparel, packaging, labels, business cards and paper décor

Cutter Features:

• Auto registration mark sensor (perfect for print and cuts)
• Contour and perforated cut
• Fast and accurate digital servo motor
• 4 point, dual-axis skew correction
• Tangential control enhanced precision
• Graphtec Studio Pro Software
• Plug-ins available for Adobe Illustrator and CorelDraw

Specifications:

• Maximum media size: 13″ x 19″
• Cutting speed maximum: 23 in/s all directions
• Cutting force maximum: 450 gf with CE7000-40
• 100 to 240 V AC (requires three power outlets)
• Holds up to 200 sheets
• Averages 30-40 seconds per sheet
• Custom ASC Software (FOR WINDOWS)
• 55 lbs (cutter unit, auto feeder unit, catch tray)
