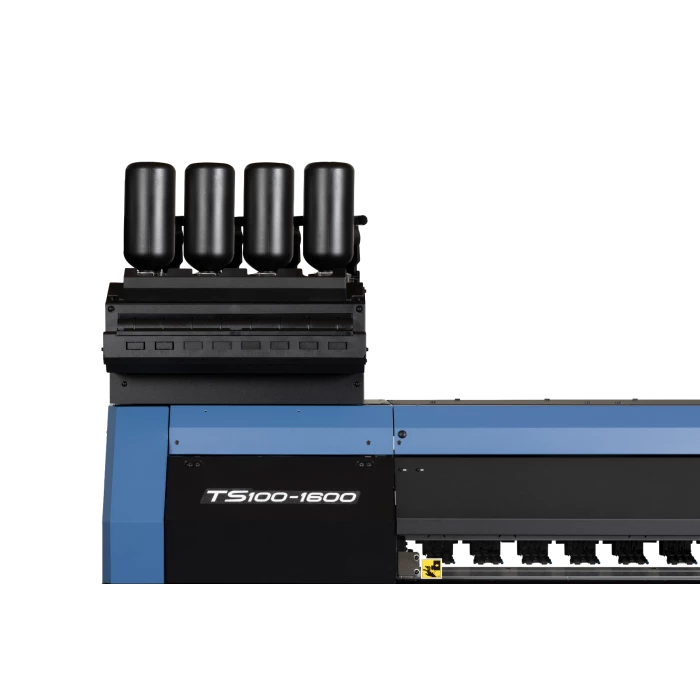

Mimaki TS100-1600 - 64" Sublimation Printer -Home Sales Store ts100 1800 bottle ink

Mimaki TS100-1600 – 64″ Sublimation Printer

$95.99

SKU: TS100-1600-111 Categories: Large Format Printers, Mimaki Sublimation Printers, Printers & Ink

Free Shipping over $25
Fast & reliable delivery options
Enjoy top quality items for less
Multiple safe payment methods

Introducing the Mimaki TS100-1600 – Professional Results at an Entry Level Price!

The Mimaki TS100-1600 is an affordable, large format, roll-based sublimation printer offering you the ability to create professional grade prints up to 64” wide. With consistently superior results, you can print highly detailed graphics for production runs both small and large. This ultra-sleek model offers a top-notch maintenance performance check – so there is no need to worry about clogged nozzles and future issues. Mimaki’s Nozzle Recovery System (NRS), which automatically substitutes unproductive nozzles, will save you time and money by avoiding unnecessary downtime and poor image quality. The NEW Dot Adjustment System (DAS) and NEW, easier to use RIP software, RasterLink7, will have you creating beautifully detailed prints in no time.

With Mimaki’s 64″ printer you can print media such as garments, signs and banners, and even home decor – imagine the possibilities!

Helpful Resources

Printer Package Includes:

Mimaki 64” Printer
Stand
Take-up Reel
Power Cord x2 (110v)
RasterLink 7 RIP Software
12 Month Manufacturer Warranty
150mL bottle Flushing Fluid for Maintenance

Additional Required Items, not included – Sold separately:

Flushing Cartridge for Installation
USB Cable or Ethernet Cable (Cat6 Recommended)
Installation

Installation Ink and Replacement Ink:

Blue (I-SB610-BLT-BA-1)
Magenta (I-SB610-MT-BA-1)
Yellow (I-SB610-YT-BA-1)
Black (I-SB610-KT-BA-1)

Features:

Print speeds up to 753 Sq Ft/Hr
4 standard color options: Blue, Magenta, Yellow and Black
Dot Adjustment System (DAS) automatically aligns to ensure consistent quality
and repeatability
Nozzle Check Unit (NCU), automatically monitors printhead performance and detects
clogged nozzles
The Nozzle Recovery System (NRS), automatically substitutes unproductive nozzles,
avoiding unnecessary downtime and poor image quality
Easy to use RIP software, RasterLink7, included; reduces RIP time by 25% &
TxLink4 Lite for multi color separation.

Specifications:

Printhead: Two staggered, on-demand piezo heads
Print resolution: 360 dpi, 600 dpi, 720 dpi, 900 dpi
Maximum print area: 63.3 in
Maximum media width: 63.8 in
Ink capacity: 1 liter bottle (1000 mL)
Media thickness: Up to 0.04” (1 mm)
Rolled media weight: 99.2 lbs (45 kg)
Interface: 1000 Base-T Ethernet cable or USB2.0 cable
Power supply: Single-phase AC 100-120V/ AC200-240Vx1
Power consumption: INLET 1/2: 1,440W or less (AC100V environment) 1,920W or less (AC200V environment)
Operational environment: Temperature: 68 – 86 °F (20 – 30 °C)
Operational environment: Humidity: 35 – 65 % RH (Non condensing)
Dimensions (W × D × H): 109.3 x 27.6 x 58.1” (2,775 x 700 x 1,475 mm)
Weight: 366 lbs. (166kg)
