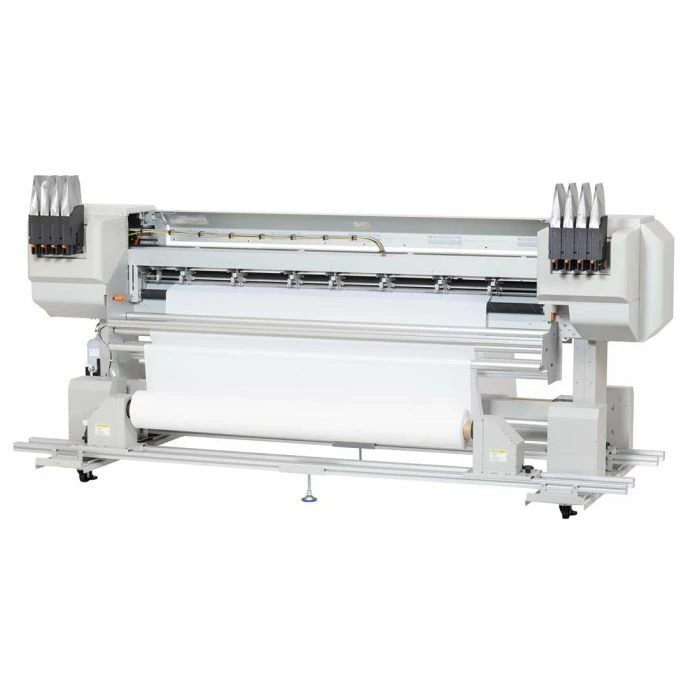

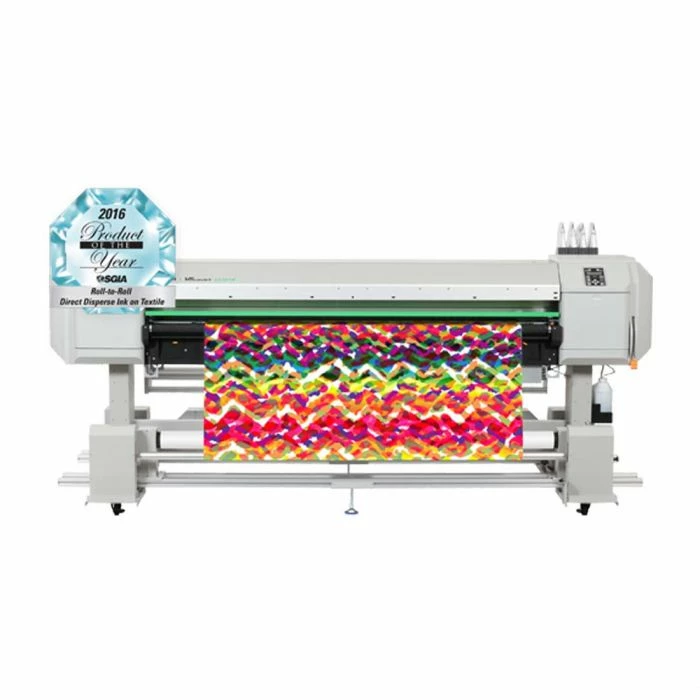

Mutoh ValueJet 1938TX 75” Direct-to-Textile Printer

Enter the World of Textile Printing with the 1938TX

With the 75” wide Mutoh ValueJet 1938TX direct-to-textile printer, you can create customized fashion apparel, upholstery, interior decor, scarves, trade show graphics, soft signage, flags, sportswear and much more. Print designs and photographic artwork directly onto a variety of fabrics including closed, open non-stretch, face-in and face-out roll media. Its high-quality engineering, Smart Printing Technologies, wide print area and fast print speeds are only a few of the features that make the ValueJet 1938TX a valuable addition to any print shop looking to enter or expand their textile printing applications.

The ValueJet 1938TX employs 2 heads for blazing fast print speeds up to 914 sqft/hr, and the 8-channel piezo print head technology creates images that stand out and look sharp to even the most discerning viewers.

Features:

• 75 inch direct to textile printer
• Mutoh TP-11 Pigment ink (Full warranty)
• 1938TX is compatible with:
  • Reactive inks for rayon, cotton, and silks
  • Acid inks for nylon, silks, and wools
  • Disperse dyes for polyester
  • Pigment inks for natural, blended, and coated fabrics
• Up to eight colors
• Staggered dual print heads, print speeds up to 914 sqft/hr
• Front and back tensioning
• Customized, easy to use feed and take-up system designed for fabric
• Open RIP software architecture
• One year on-site limited warranty

Specifications:

• Print Method: Drop-On Demand, Piezo Drive Method
• # of Nozzles / # of Heads: (180 x 8 rows) / 2 heads
• Ink Type: Mutoh Textile Pigment Ink
• Variable Dot: Yes
• Color Options: 4 x 2, 8
• Print Modes: 1440/1080/720/540/360dpi, 29 modes
• Maximum Print Speed / Resolution: 914 sqft/hr at draft quality speed
• Maximum Resolution: 1440 dpi
• Head Height:
  • Low: 3 stages (6.0 mm, 3.5 mm, 2.5 mm)
• Maximum Media Width: 75 inches
• Maximum Print Width: 74.8 inches
• Maximum Media Roll Weight: 220 lbs with Heavy Duty Feed & Take-Up
• Media Roll Diameter / Core: 9.8” maximum / Core 3” or 2”
• Take-Up System: Heavy Duty Feed & Take-Up Included
• Gutter System: Included
• Media Auto Cut: N/A
• RIP Software: Open
• Power Requirements: 100-120V or 200-240V / 20AMP
• Operating Temperature: 68°F – 89.6°F
• Operating Humidity Range: 40% – 60%
• Dimensions (Printer) WxDxH: 117.4” x 44.6” x 49.6”
• Weight (Printer): 356 lbs / Stand 81.6 lbs / Take Up 231.5 lbs
• Warranty: 1-Year On-Site Limited
