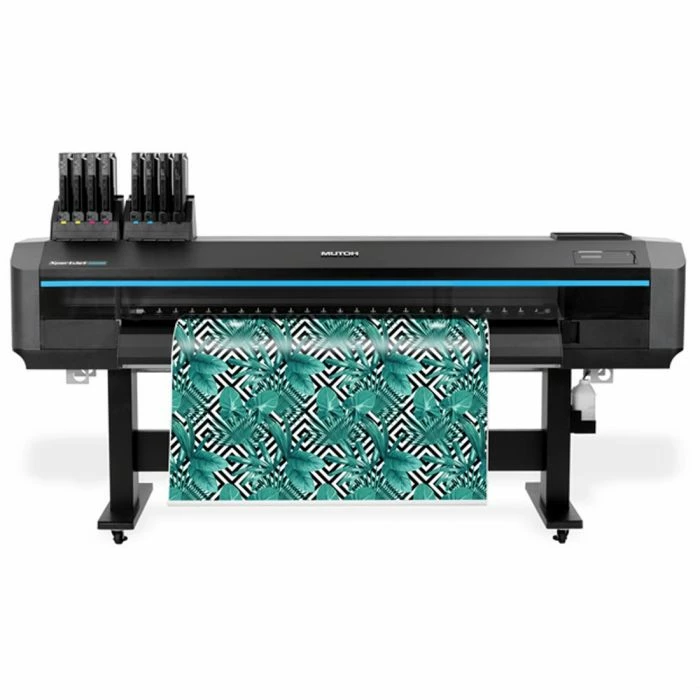

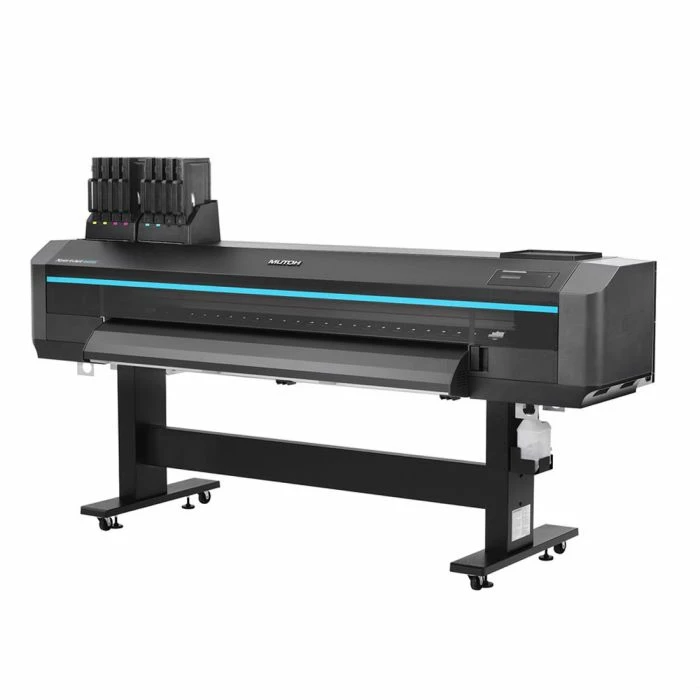

Mutoh XpertJet 1682WR 64” Dye-Sublimation Printer

The XpertJet 1682WR Ensures Maintenance, Usability, and Quality

The Mutoh XpertJet 1682WR 64″ is a high-speed water-based inkjet printer with a new platform that inherits the properties of the XpertJet series. The XPJ-1682WR provides improved usability and reduces operational workload which will ensure high-quality prints, high productivity outputs, and user-friendly operation. A newly developed multi-stage pressurizing system enhances media feed stability for a wide range of media.

Mutoh original dye-sublimation transfer ink (DH21) provides optimum print quality and a wide color gamut. The DH21 ink is available in a 4-color CMYK configuration with large-capacity ink bags (1,000ml or 2,200ml) and new front-access ink cases supporting prolonged continuous printing. The XPJ-1682WR delivers high-quality graphics onto a wide range of materials such as trade show graphics, flags, banners, custom interior designs, apparel, sports uniforms, and more.

Features:

• 64” dye-sublimation
• Staggered Dual heads/Up to eight colors
• Print speeds up to 1,012sqft/hr
• Multi-Language OLED Display
• Enhanced media handling & transport
• Automatic User Bi-Directional Alignments
• Open ink architecture with chip turn off available
• Open RIP software architecture
• Smart Communication through Mutoh Status Monitor
• Automatic sheet off function
• Take-up system optional
• One-year on-site limited warranty


Specifications:

Print Head

• Print Method: On-demand piezo drive system
• Head Height: Three-level adjustment of Low .06 in, Mid, .09 in, and High .16 in
• Number: 2 Staggered

Media

• Width: Maximum 63.98 in
• Max Thickness: 0.01 in (the head height is set to Low) 0.05 in (the head height is set to Mid) 0.11 in (the head height is set to High)
• Roll Capacity: 5.9 in diameter | 2 inches or 3 inches | 66.14 lbs. or less
• Max Print Width: 63.58 in
• Max Print Length: 4921 ft

Ink

• Type: DH21 Dye Sublimation
• Ink Set: 4 colors (C, M, Y, K) | 7 colors (C, M, Y, K, Lc, Lm, Lk)
• Capacity: 1000 ml | 2200 ml ink bags

Other

• Print Resolution: Max 1440 dpi
• Interface: Gb-Ethernet (1000BASE-T)
• Power Requirements: AC 100-120V± 10%/ AC 200V~240V± 10% | Frequency 50/60Hz ± 1Hz
• Power Consumption:
  • Operation: AC100V~120V | AC200V~240V, 180W or below
  • Sleep Mode: AC100V~120V | AC200V~240V, 30W or below
• Printable Environment Temperature: 68-89.6°F | Humidity: 40-60%RH (non-condensing)
• Optimal Temperature: 71.6-86°F | Humidity: 40-60%RH (non-condensing)
• Dimensions (WxDxH): 109 in x 35 in x 56 in (cover closed); 109 in x 35 in x 63 in (with ink bag cases)
• Weight:
  • Main body: 315 lbs.
  • Stand: 71 lbs.
• RIP Software Included – FlexiDYESUB – Mutoh Edition (1 year free trial)
